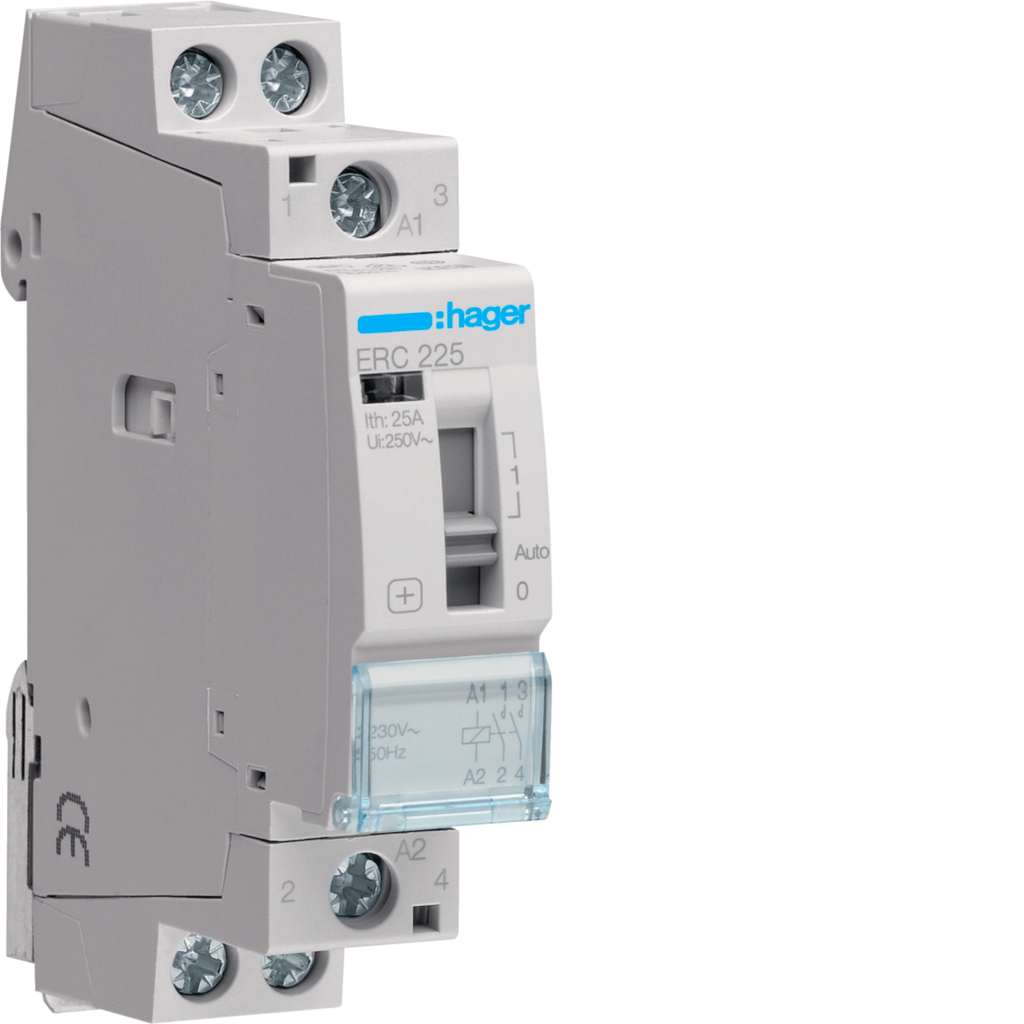

Hager – ERC225 – Contactor – 25 A – 2 NO – 230V AC 50/60Hz
€ 35,28 incl. VAT
€ 29,16 excl. VAT
Contactor
- 2 NO
- 25 A
- 230 VAC
Available on backorder
- ✔ 30-Day Money-Back Guarantee
- ✔ Open Source Firmware
- ✔ In-house Technical Support
Technical characteristics
Connection
- Contact type: 2 NO
- Number of contacts: 2
- Flexible conductor cross-section: 1 – 6 mm²
- Rigid conductor cross-section: 1 – 10 mm²
Current / temperature
- Rated current: 25 A
Capacity
- Number of modules: 1
Frequency
- Frequency: 50 – 50 Hz
Voltage
- Rated impulse withstand voltage Uimp: 4000 V
- Rated insulation voltage Ui: 250 V
- Rated voltage Ue: 230 – 230 V
- Control voltage AC: 230 – 230 V
- Control voltage DC: 0 – 0 V
Operating conditions
- Operating temperature: -10 – 50 °C
- Storage/transport temperature: -40 – 80 °C
Use
- Utilization category: AC-7a/AC-7b
Lifespan
- Maximum number of mechanical operations: 100000
- Electrical lifespan in number of cycles: 30000
Power
- Total power loss at IN: 4 W
- Inrush consumption: 10.70 VA
Dimensions
- Height: 83 mm
- Width: 17.85 mm
- Depth: 60 mm
Configuration
- Number of NO contacts: 2
- Number of NC contacts: 0
- With manual override switch: Yes
Installation, mounting
- Tightening torque: 1.20 Nm
