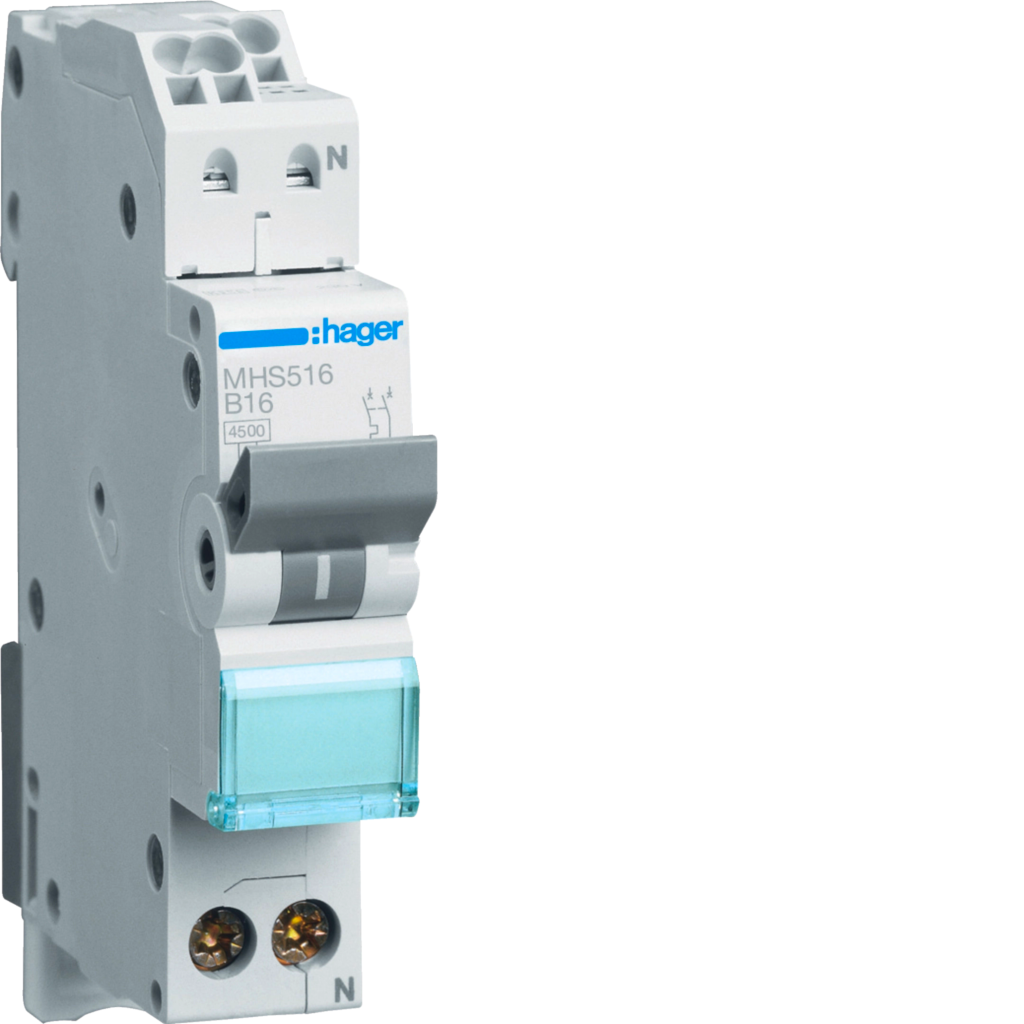

Hager – MHS516 – Miniature circuit breaker – B16 – 16 A – 1P+N – 4.50 kA – QuickConnect

Technical characteristics

Version

• Pole type: 1P+N
• Tripping characteristic: B

Current / temperature

• Rated current: 16 A
• Service breaking capacity according to EN 60898: 4.50 kA
• Breaking capacity Icn at 230 VAC according to IEC 60898-1: 4.50 kA
• Min/max thermal protection threshold for AC: 1.13 – 1.45 A
• Min/max thermal protection threshold for DC: 1.13 – 1.45 A
• Rated current at -25°C: 20.10 A
• Rated current at -20 °C: 19.70 A
• Rated current at -15°C: 19.40 A
• Rated current at -10°C: 19.10 A
• Rated current at -5°C: 18.70 A
• Rated current at 0 °C: 18.30 A
• Rated current at 5°C: 18 A
• Rated current at 10°C: 17.60 A
• Rated current at 15°C: 17.20 A
• Rated current at 20 °C: 16.80 A
• Rated current at 25°C: 16.40 A
• Rated current at 30°C: 16 A
• Rated current at 35°C: 15.60 A
• Rated current at 40 °C: 15.10 A
• Rated current at 45 °C: 14.70 A
• Rated current at 50 °C: 14.20 A
• Rated current at 55°C: 13.80 A
• Rated current at 60°C: 13.30 A
• Rated current at 65°C: 12.80 A
• Rated current at 70°C: 12.20 A
• Rated current correction factor for 2 adjacent circuit breakers: 1
• Rated current correction factor for 3 adjacent circuit breakers: 0.95
• Rated current correction factor for 4 and 5 adjacent circuit breakers: 0.90
• Rated current correction factor for 6 adjacent devices: 0.85

Main electrical features

• Rated short-circuit breaking capacity Icn according to IEC 60898-1: 4.50 kA

Installation, mounting

• Tightening torque bottom terminal: 1.90 NM
• Top connection type for modular devices: QuickConnect
• Bottom connection type for modular devices: Screw connection
• Tightening torque: 1.90 NM

Voltage

• Rated voltage Ue: 230 – 240 V
• Power supply type: AC
• Rated insulation voltage Ui: 500 V
• Rated impulse withstand voltage Uimp: 4000 V
• Maximum operating voltage: 253 V
• Overvoltage category according to IEC 60947-1: 3

Frequency

• Frequency: 50 – 60 Hz

Capacity

• Number of modules: 1

Power

• Total power loss under IN: 4.20 W

Operating conditions

• Operating temperature: -25 – 70 °C
• Max. altitude: 2000 m

Lifespan

• Electrical life in number of cycles: 1000
• Maximum number of mechanical operations: 20000

Safety

• IP protection class (Ingress Protection): IP20

Connection

• Connection cross-section QuickConnect outputs with solid conductors: 1.5 – 4.0 mm²
• Connection cross-section QuickConnect outputs with flexible conductors: 1.5 – 4.0 mm²

Connection options

• Connection method: QuickConnect
• Top connection alignment for modular devices: Staggered
• Bottom connection alignment for modular devices: Staggered

Dimensions

• Height: 86 mm
• Width: 17.50 mm
• Depth: 70 mm
