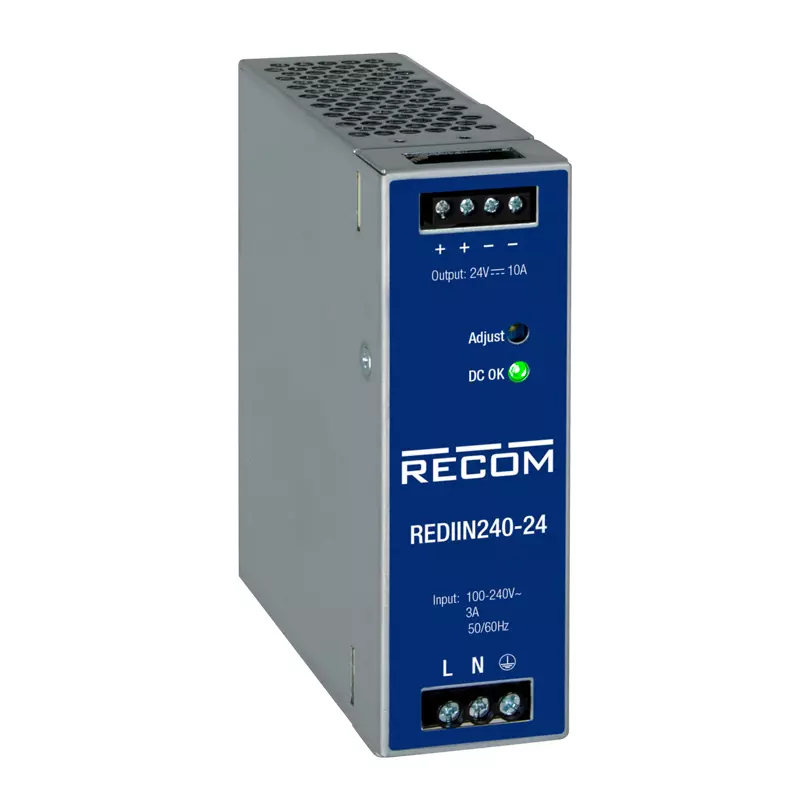

AC/DC Power Supply – Recom – REDIIN240-24 – 24V – 240W
€ 76,84 incl. VAT
€ 63,50 excl. VAT
The REDIIN240 DIN-rail power supply delivers 240W in a highly compact housing. Available with adjustable 24V outputs, it is suitable for industrial applications thanks to its constant current mode and a wide temperature range of -30°C to +50°C. The series complies with international safety and EMC standards and the RoHS Directive.
Available on backorder
- ✔ 30-Day Money-Back Guarantee
- ✔ Open Source Firmware
- ✔ In-house Technical Support
The REDIIN240 DIN-rail power supply series is designed for cost-conscious users who need essential features for many general industrial applications, without compromising on quality and reliability within the Basic Functions market segment.
The REDIIN240 series delivers 240W of output power in an ultra-compact size of just 123.6 x 40.0 x 116.8 mm. The REDIIN240-24 offers an output voltage of: 24V.
The convection-cooled units operate at full power at temperatures from -30°C to +50°C (230VAC). They can operate in constant current mode, making them suitable for inductive and capacitive loads.
The product is certified according to safety standards:
IEC/EN/UL 62368-1
IEC/EN/UL 61010-1
IEC/EN/UL/CSA 61010-2-201
The electromagnetic radiated and conducted emissions comply with the heavy industrial standard EN 61000-6-4 Class B and the EN 61000-6-2 Immunity standard.
Additionally, the product meets the environmental protection requirements as set out in the RoHS Directive.
| Attributes | REDIIN240-24 |
|---|---|
| AC/DC or DC/DC | AC/DC |
| Power (W) | 240 |
| Isolation | Isolated |
| Vin (V) | 90 – 264 |
| Main Vout (V) | 21.6 to 26.4 |
| No. of Outputs | Single |
| Iout 1 (mA) | 10000 |
| Isolation (kV) | 3 |
| Mounting Type | DIN-Rail |
| Package Style | DIN-Rail |
| Length (mm) | 123.6 |
| Width (mm) | 40 |
| Height (mm) | 116.8 |
| Certifications | CB, CE, EN 55032, EN 61010-1, EN 62368-1, UL 62368-1 |
| MIN Operating Temp (°C) | -30 |
| MAX Operating Temp (°C) | 50 |
| Protections | OCP, OTP, OVP, SCP |
| Trim Pin Output Voltage Adjustment | +/-10% |
| Directives | REACH, RoHS 2+ (10/10), WEEE |
| Packaging Type | Cardboard Box |
| Warranty | 3 Years |
| Regulation | Regulated |
| Weight | 450 g |
|---|---|
| Dimensions | 117 × 30 × 124 mm |
